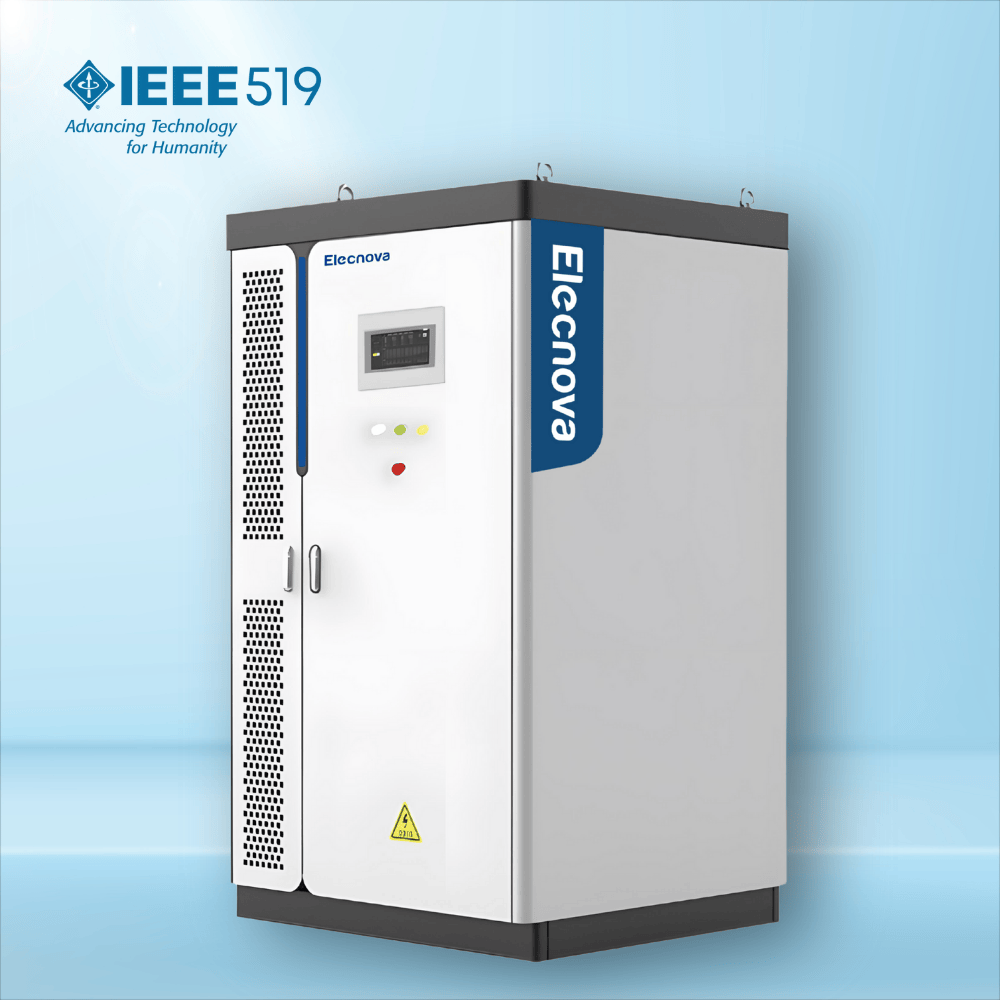

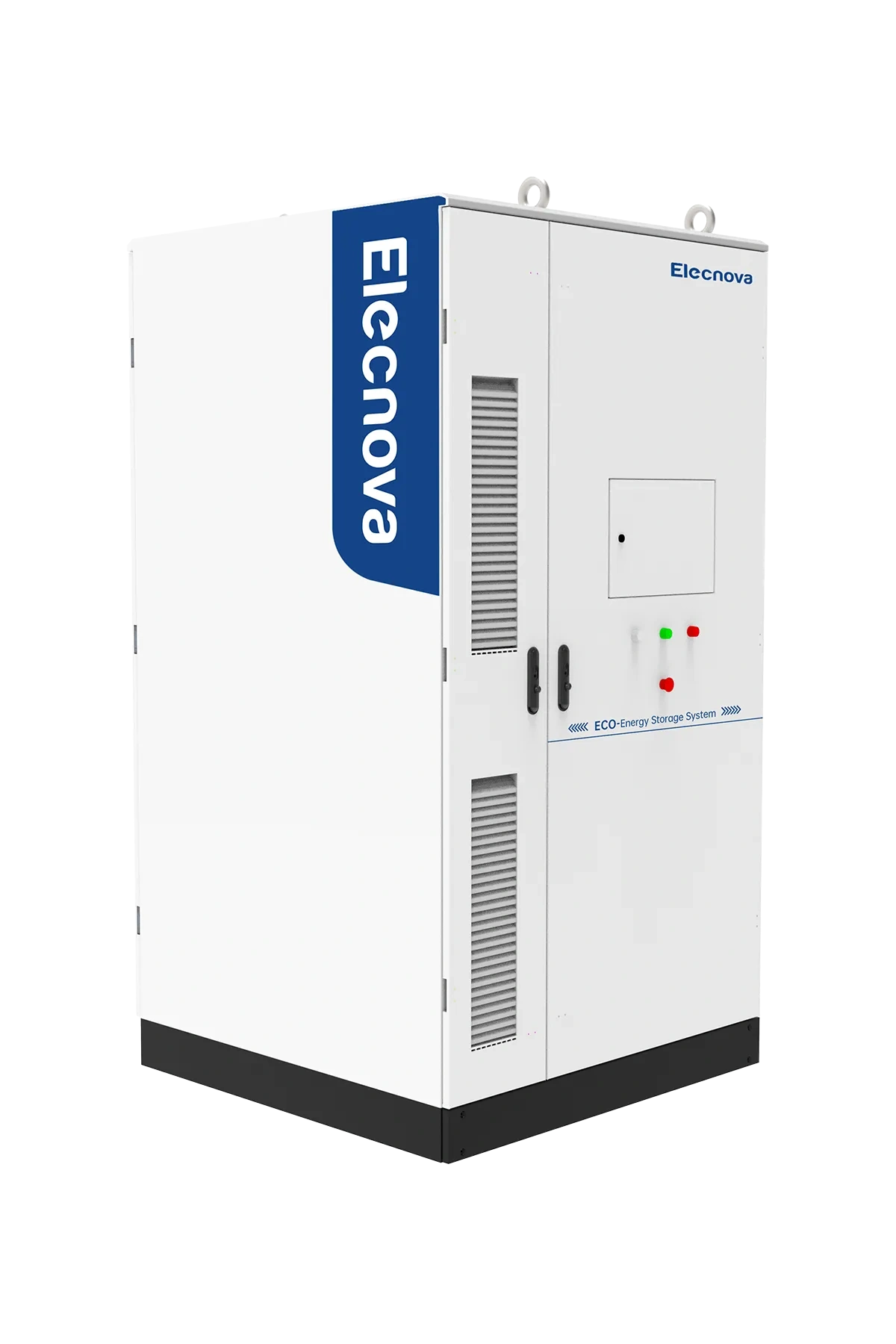

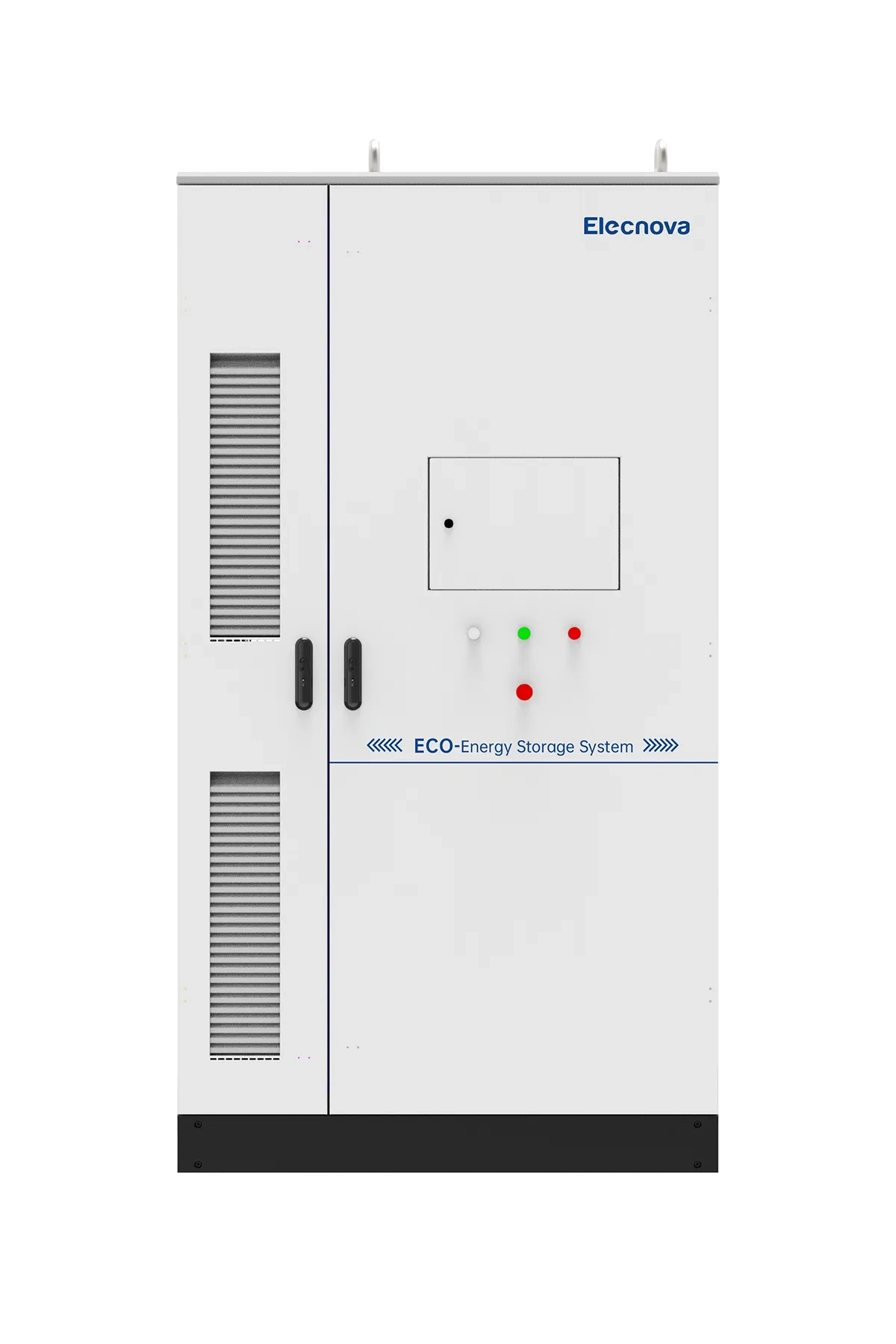

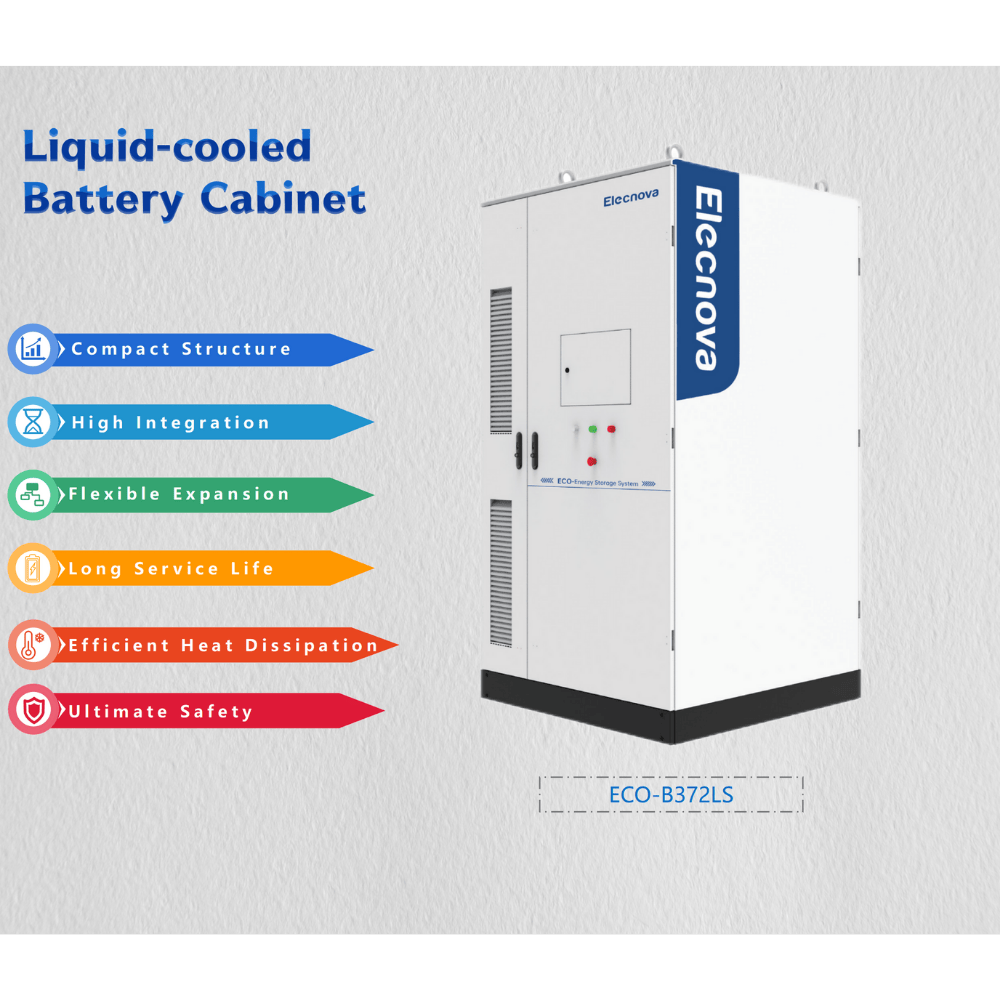

Liquid-cooled battery cabinet ini menggunakan strategi cabinet-level liquid cooling dan temperature balancing. Cell temperature difference kurang dari 3°C, yang meningkatkan konsistensi cell temperature dan memperpanjang battery life. Desain modular membuat parallel solution lebih fleksibel dan dapat dikombinasikan dengan centralized PCS untuk membentuk ESS dengan higher energy density, sehingga secara signifikan meningkatkan economy, safety, dan construction convenience pada proyek ESS.
Compact
1.7 m footprint only, easy transportation & fast installation.
High Integration
Multiple units connected in parallel achieve MV/HV connection with PCS-boost containers.
Efficient Cooling
Optimal in-PACK duct design, achieve high-efficient cooling and low energy consumption.
Flexible Expansion
Support seamless cabinets combination and flexible grid access.
Long Cycle Life
Over 8,000 times cycle life, excellent performance of battery system.
Ultimate Safety
In-PACK fire warning and protection with NOVEC1230/aerosol, prevent heat diffusion and runaway.
Less footprint compared with air-cooled unitof same energy level.

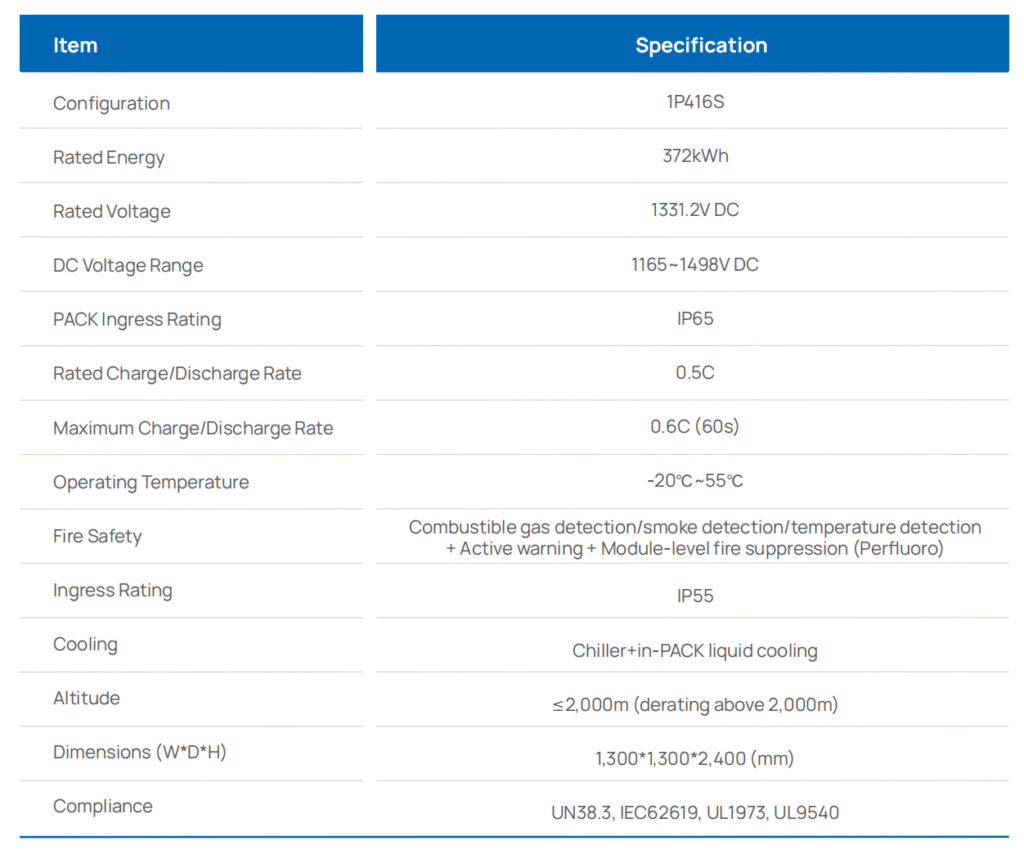

372kWh energy in one cabinet and ensure long-termendurance.
Optimal in-PACK duct design, achieve high-efficientcooling and low energy consumption.
Over 8,000 times cycle life, excellent performance ofbattery system.
Modular design,simplified parallel expansion.
In-PACK and triple-level fire safety, prevent heat runaway.
